3Pieces DM1531S Servo &1 Piece BLS2036T Servo ALZRC 505 Helicopter Parts Digital Metal Servo-in Parts & Accessories from Toys & Hobbies

Scroll to product details, material & care and sizing

$ 195.89

Add to cart Add to wishlist

Term:
rc tarot, mg995 servo, car servo, Wholesale servo waterproof, Wholesale mg995, Wholesale high speed rc helicopter, Wholesale alzrc servo, Wholesale car rc piece, Wholesale q330, Wholesale control servo, Wholesale fast servo, Wholesale crankshaft oil seal,

3Pieces DM1531S Servo &1 Piece BLS2036T Servo ALZRC 505 Helicopter Parts Digital Metal Servo Details & Specification :

Item Specifications
Use Vehicles & Remote Control Toys
RC Parts & Accs Servos
Four-wheel Drive Attributes Assemblage
Wheelbase Screws
Tool Supplies Grinded
Model Number BLS2036T+DM1531S
Remote Control Peripherals/Devices ESC
For Vehicle Type Helicopters
Material Metal
Brand Name TAROT-RC
Technical parameters KV1100
Upgrade Parts/Accessories Servos

6b57fa61d5eba085a4f1657a9315eaff

ad3a9574d5ce62f835b34ac4eeca67e3

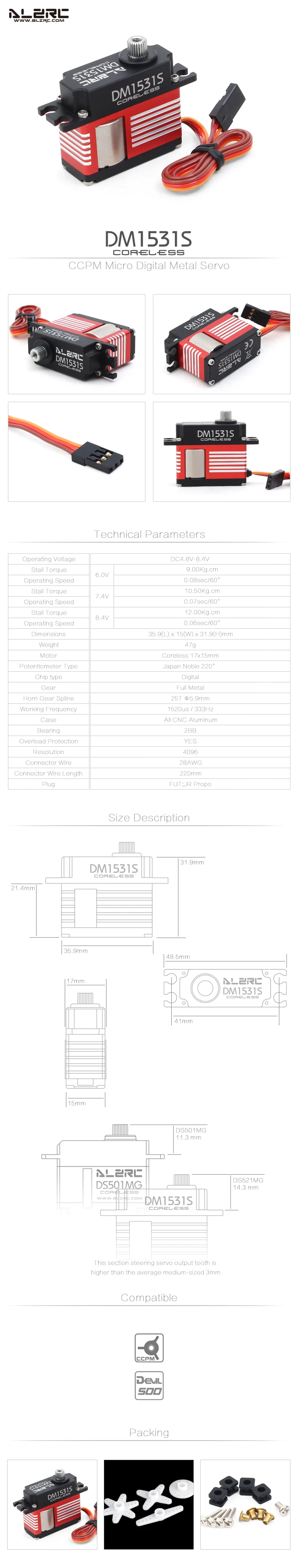

DM1531S

Description:

●Compatible Devil 500 Pro.

●Using 1715-type 5-pole Coreless motor, 1715 large motors 'speed is quicker,steering torque is greater,and using life is longer than 1515 small motors.
●Japan Noble 220°potentiometer,high accuracy,consistency,and one million times the high life potentiometer.
●High resolution digital chip,stable performance,strong anti-interference ability,fast reaction speed,high precision,more delicate and smooth operation control.
●Aluminum alloy shell, processed by high precision CNC, better protection of the actuator product precision and cooling performance.
●Taiwan imported all metal gears, input and main gear wheel made of high strength material and hard iron manufacturing, reinforcing the strength and durability of gears, a higher degree of smoothness, even smaller gear virtual spaces.
●Double bearing design,imported precision miniature bearing, a greater degree of protection gear concentricity and smoothness.

Specification:

●Operating Voltage: DC6.0V-8.4V

●Stall Torque/Operating Speed:
- 8.4V - 12.0Kg.cm/0.06sec/60°
- 7.4V - 10.5Kg.cm/0.07sec/60°
- 6.0V - 9.0Kg.cm/0.08sec/60°
●Dimensions: 35.9(L) x 15(W) x 31.9(H)mm
●Weight: 47g
●Motor: Coreless 17x15mm
●Potentiometer Type: Japan Noble 220°
●Chip type: Digital
●Gear: Full Metal
●Horn Gear Spline: 25T Φ5.9mm
●Working Frequency: 1520us / 333Hz
●Case: All CNC Aluminum
●Bearing: 2BB
●Overload Protection: Yes
●Resolution: 4096
●Connector Wire: 28AWG
●Connector Wire Length: 220mm
●Plug: FUT;JR Propo






Packaging:




1.ALZRC - BLS2036T Full Size Digital Metal Locked RudderX 1
2.ALZRC - DM1531S CCPM Medium Digital Metal Servo X3
